Wheel Spacers (pair)

Product Details

Achieve the perfect flush look and widen your track width for better handling with Rennline's Wheel Spacers. Whether you are correcting wheel offset for aftermarket wheels or clearing a big brake kit, our spacers are precision-machined for a safe, vibration-free fit. They come in three specific configurations that cover almost every Porsche 5x130 application — read the Fitment Guide carefully to determine which style fits your specific hub.

• Precision Engineering: Machined from high-strength 6061-T6 aluminum
• Corrosion Resistant: Hard-anodized black finish with laser-etched Rennline logo
• Hub-Centric Fitment: Specific designs maintain the factory 71.6mm hub bore on all applicable models
• Sold as a pair
• Longer wheel bolts or studs are required for proper thread engagement and are sold separately

Need a complete solution? We offer Spacer + Bolt bundles:

• Spacer + Bolt Kit LS27 — fits 996 / 997 / 991 / 986 / 987 / 981
• Spacer + Bolt Kit LS29 — fits 992 / 718 / 9Y0 Cayenne
• Buying bolts separately? Order the correct Extended Wheel Bolts (LS22) for your spacer size

Fitment Guide

These spacers fit a wide range of vehicles on the 5x130 / 71.6mm hub. Confirm your model below, then use the hub-style guide to pick the correct spacer style and size for your specific hub.

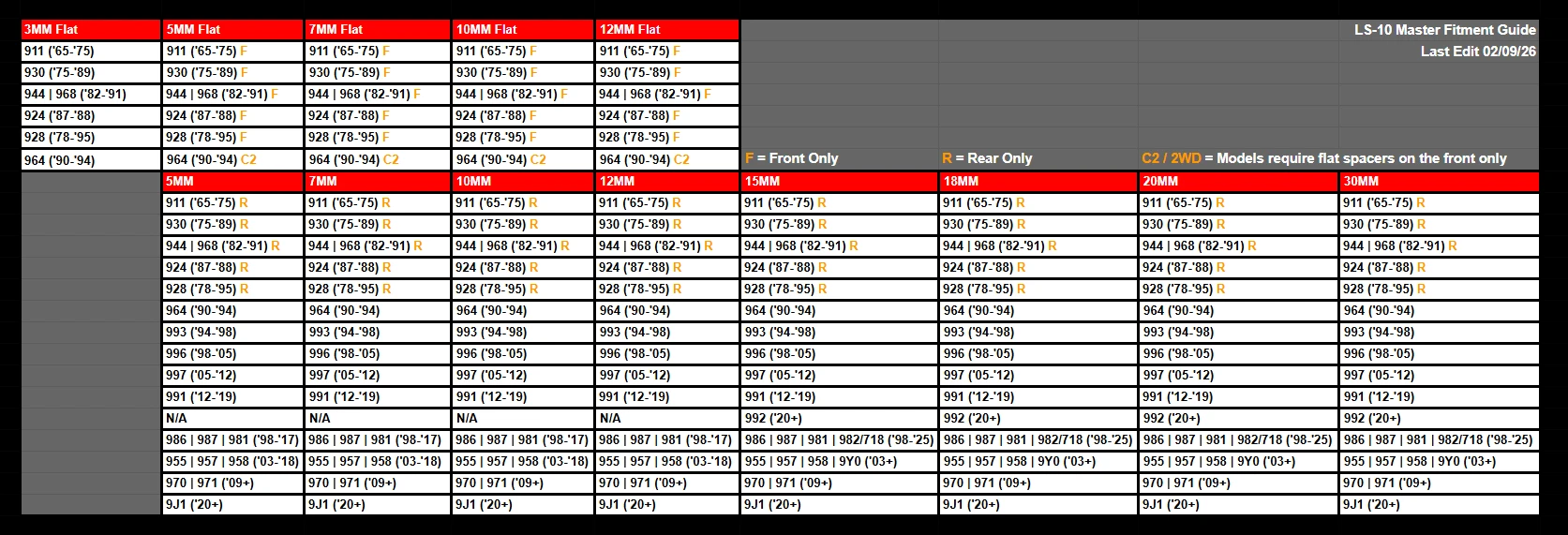

Choose the correct spacer style for your hub. The size-by-size, front/rear detail is in the chart below and in the linked Master Fitment Guide.

"Flat" Series — Sizes 3mm to 12mm

• Design: Perfectly flat face with no protruding hub-centric lip.
• Required for: Early front hubs — 911 (1965-1989), 930, 944, 928, 924S. Transitional front hubs — 964 & 993 (C2 / 2WD models).
• Why: These hubs have a large grease cap or protruding snout that sticks out past the rotor hat, so a standard hub-centric spacer will not fit. The flat design lets the factory hub pass through the spacer to center the wheel safely.

"3-Tab" Series — Sizes 5mm to 12mm

• Design: Hub-centric lip supported by three distinct tabs on the front.
• Required for modern hubs: 911 — 996, 997, 991, 992 (15mm+); Boxster / Cayman — 986, 987, 981, 982/718 (15mm+); SUV / Sedan — Panamera, Cayenne (pre-2019), Taycan.
• Select late-model Porsches use a 5-Tab hub and require a 5-Tab spacer for sizes below 15mm — see LS24: 992, 982/718, 9Y0 Cayenne.
• Why: These modern hubs use a 3-tab snout; our spacers interlock with the factory tabs to extend the hub lip, keeping the wheel centered and vibration-free.
• Special note for 964 / 993 C4 (AWD): Many C4 all-wheel-drive models have a front hub that accepts the 3-Tab style, but you MUST visually verify your hub has the three locking slots before ordering. If your hub is round/smooth, use the Flat style.

"Universal" Series — Sizes 15mm to 30mm

• Design: Full solid hub-centric lip extension.
• Required for: ALL Porsche 5x130 hubs (early and late models).
• Why: At 15mm+ the spacer is thick enough to completely swallow the factory hub snout (3-tab, round, or grease cap), so a fresh 71.6mm lip is machined on the spacer itself, making it compatible across all generations.

Notes

• Macan: These spacers do NOT fit the Porsche Macan (5x112 bolt pattern). For the Macan, see the Macan Spacer + Bolt Kit (LS28) — complete kit with hardware, or Macan Spacers Only (LS23) — spacers only.
• Center Lock: These spacers are for 5-lug vehicles only. They are NOT compatible with center-lock wheels.
• Clean Surface: Hubs must be cleaned of all rust and debris before installation so the spacer sits perfectly flush.
• Installation Difficulty: 1 out of 5.

FAQ

Q: How do I know which spacer style my car needs?

A: Match your hub type to the Flat / 3-Tab / Universal breakdown in the Fitment Guide. Sizes 15mm and up (Universal) fit all Porsche 5x130 hubs; below 15mm, the style depends on your specific hub.

Q: Do I need longer bolts?

A: Yes. Spacers require longer wheel bolts or studs for proper thread engagement, sold separately. Consider the LS27 / LS29 Spacer + Bolt bundles, or extended LS22 bolts sized to your spacer.

Q: Will these fit my Macan?

A: No — the Macan uses a 5x112 bolt pattern. Use LS28 (kit) or LS23 (spacers only) instead.
